Pressure Independent Control Valves

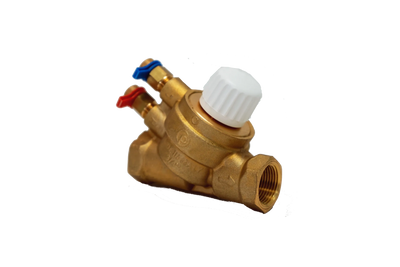

Dynasty Pressure independent balancing and control valve with linear characteristic.

Axial Control Style, Control Range: 3-87 PSI

 Nema 1, UL Listed, Ambient Temperature 32°F to 120°F

• O-10VDC: Nema 1, UL873, 2.5 VA power consumption, 90 second run time, Ambient temperature 21°F to 122°F
• Floating: NEMA 1, UL873, 0.8 VA power consumption, 150 second run time, Ambient temperature 21°F to 122°F

 Nema 1, UL Listed, Ambient Temperature 32°F to 120°F

• O-10VDC: Nema 1, UL873, 2.5 VA power consumption, 90 second run time, Ambient temperature 21°F to 122°F
• Floating: NEMA 1, UL873, 0.8 VA power consumption, 150 second run time, Ambient temperature 21°F to 122°F

 PT Ports, Differential Pressure Regulator, Double Union Connection, Rotary Control Valve, Location Tag, 230 WOG, Presetting Device
Control Range: 5 - 60 PSI,

Nema 5, UL Listed, Ambient Temperature: -22°F to 140°F

Nema 2, UL Listed, Ambient Temperature: -40°F to 140°F

PT Ports, Differential Pressure Regulator, Flanged Connection (ANSI B16.1), Face to Face Standard (ISA-75.08.01), Multi-turn Control Valve, Location Tag, 230 WOG, Control Range: 4.35-58 PSI, Assembled with PICV 94 Series Actuator

 IP 54, UL Class 2, 1.5 W Power Consumption, 170 Sec Run Time, Ambient Temperature: -4°F to 140°F

Control Signal, Display information, and Max / Min Flow are Field Adjustable
